Welding
Officine Taiocchi’s welding department carries out third-party processing using MIG, TIG, robotic, laser, and projection welding technologies. We have skilled manual welders and robotic cells to handle any type of order.
All welding operations are integrated with the laser cutting, bending, and powder coating departments.

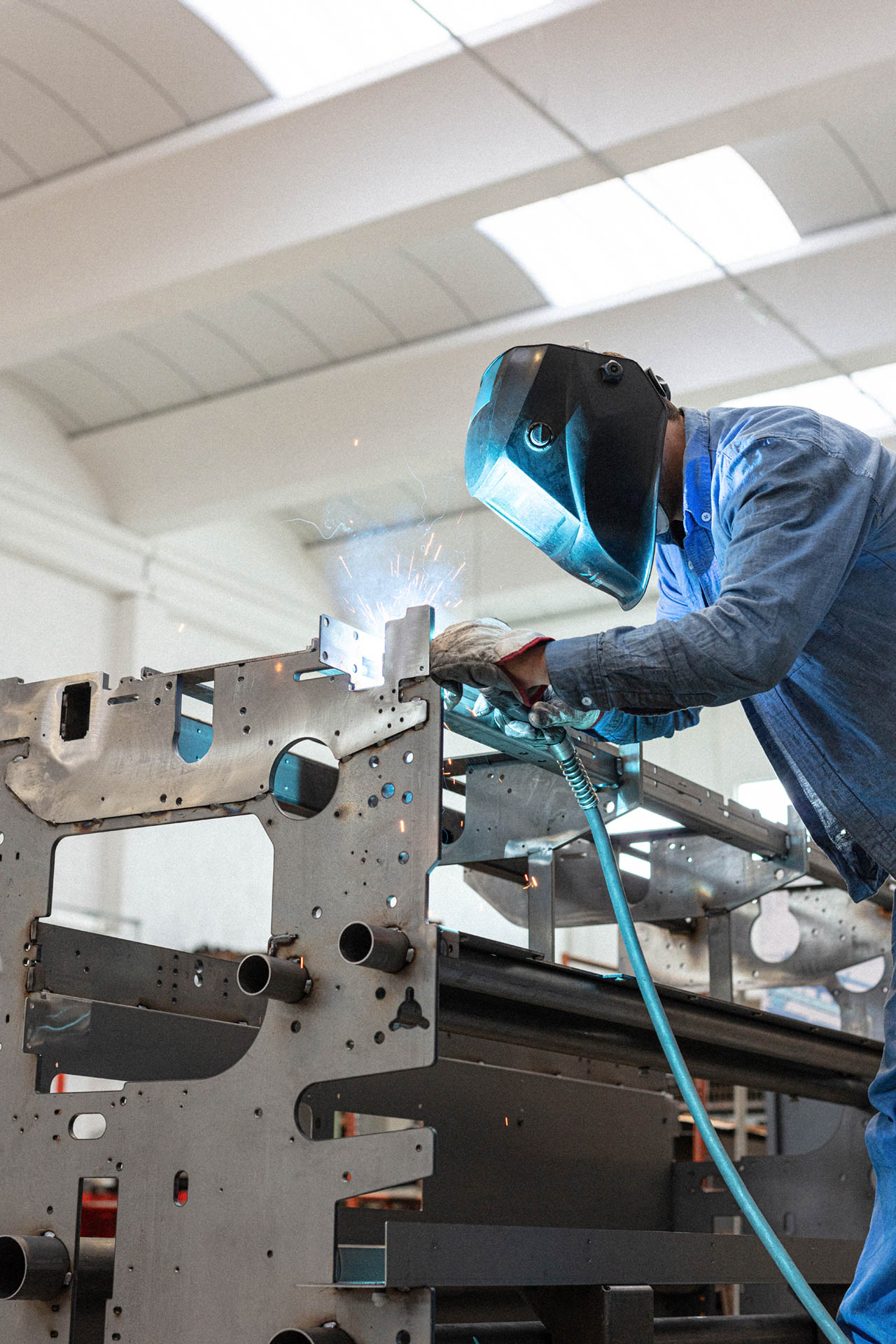

Manual welding MIG e TIG
Our qualified operators carry out bench welding with a high degree of flexibility. This approach is ideal for prototypes, small production runs, and parts with complex geometries that require manual work.
Automatic welding
For high-volume products, specific equipment and machinery have been designed to minimize costs and ensure high productivity.
Laser welding
We are among the first companies to have adopted certified manual laser welding, particularly suited to stainless steel processing in our dedicated department (see Stainless Steel Department).
Robotic welding
We have three welding cells with a two-station rotary table and a dedicated robot. The flexibility of these machines allows us to weld a wide variety of parts, supported by equipment produced in-house.
Projection welding
We have bench, suspended, and gantry spot welders for nut spot welding, as well as capacitor discharge welding systems for threaded studs.
Welding robot for large-size components
The ongoing market demand for large-sized components produced with the same precision we have always provided and guaranteed for the parts produced up to now, has driven us to invest in a state-of-the-art robotic MIG-MAG welding system.
The latest-generation robotic system consists of a 6-axis Kawasaki hollow-arm anthropomorphic robot, plus 7 additional axes on the positioners.
A rotating orbital positioner with two interpolated loading/unloading stations allows us to weld pieces with a length of up to 2500mm and a maximum rotatable diameter of 1700mm.
A second interpolated rotating positioner allows us to weld components with a length of up to 5000mm and a maximum rotatable diameter of 2000mm.
The pulsed MIG-MAG arc generator TPS500/I Pulse Fronius enables high-quality welds on any thickness with precise control over the set parameters for each bead.
As a complement to the system, a tactile sensor has also been installed. Where necessary, the robot can use this sensor to perform a ‘joint search’ before starting the welding bead, ensuring the perfect success of the welding process.
